Raft Foundation Design in Saint John NB: Geotechnical & Structural Basis

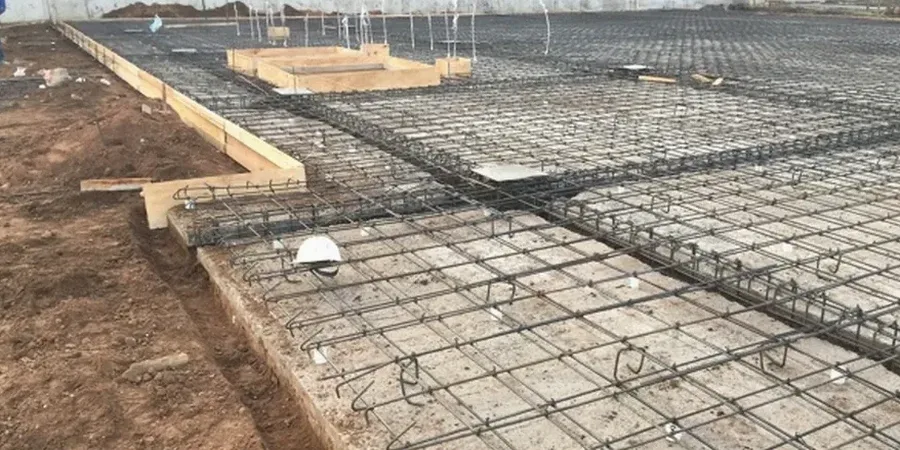

NBCC 2020 Section 4.2 governs foundation design in Saint John, and the city's marine clay deposits demand a specific approach. A raft foundation distributes building loads across a continuous slab, bypassing the need for isolated footings in compressible soils. The goal is uniform settlement control. Saint John sits on the Bay of Fundy, where thick sequences of soft Leda clay and glacial till create variable bearing conditions. CSA A23.3 defines the structural concrete parameters; our work integrates that with a detailed geotechnical model. The first step is always a targeted site investigation with SPT drilling to map the clay thickness and locate the competent till layer. This data drives the finite element analysis and the reinforcement layout.

A raft foundation in Saint John's Leda clay must satisfy both undrained bearing safety and a 50-year settlement projection under NBCC seismic loads.

Our service areas

Our approach and scope

The Saint John area has a high groundwater table, often found within 1 to 3 meters of the surface in the Millidgeville and uptown zones. This saturates the marine clay, reducing its effective stress and making it prone to long-term consolidation under load. A raft foundation counters this by acting as a rigid mat, bridging small soft spots. The analysis tracks two failure modes: bearing capacity loss in the short-term undrained state, and excessive differential settlement over decades. We model the soil-structure interaction using subgrade reaction moduli calibrated to field vane tests and oedometer data. Under the NBCC seismic hazard values for Saint John (Sa(0.2) around 0.3 g), the raft must also handle inertial forces without separating from the soil. This drives the edge beam design and top reinforcement detailing, ensuring the slab remains in full contact during a seismic event.

Raft Foundation Design in Saint John NB: Geotechnical & Structural Basis — Technical reference — Saint John NB

Local geotechnical context

A 10-story residential project on Prince Edward Street encountered 18 meters of soft clay over till. The initial isolated footing design showed unacceptable differential settlement exceeding 40 mm between columns. The risk was not total collapse, but progressive damage: cracked partitions, jammed doors, and misaligned elevators. A raft foundation reduced the angular distortion to under 1/500, keeping serviceability intact. The bigger danger in Saint John is building on clay without a proper consolidation analysis. Time-dependent settlement can continue for years after construction, cracking brick veneers and breaking utility connections. If the raft is under-reinforced at column interfaces, punching shear becomes a brittle failure risk. The geotechnical report must include corrected undrained shear strength profiles from field vane tests, not just SPT N-values, to calibrate the bearing resistance factor.
